Our Machinery

With our state-of-the-art machines, skills and professionalism, you can be assured your project will get the attention to detail it deserves. These are some of the machines we have in our manufacturing facility, each one chosen for its ability, reliability and accuracy.

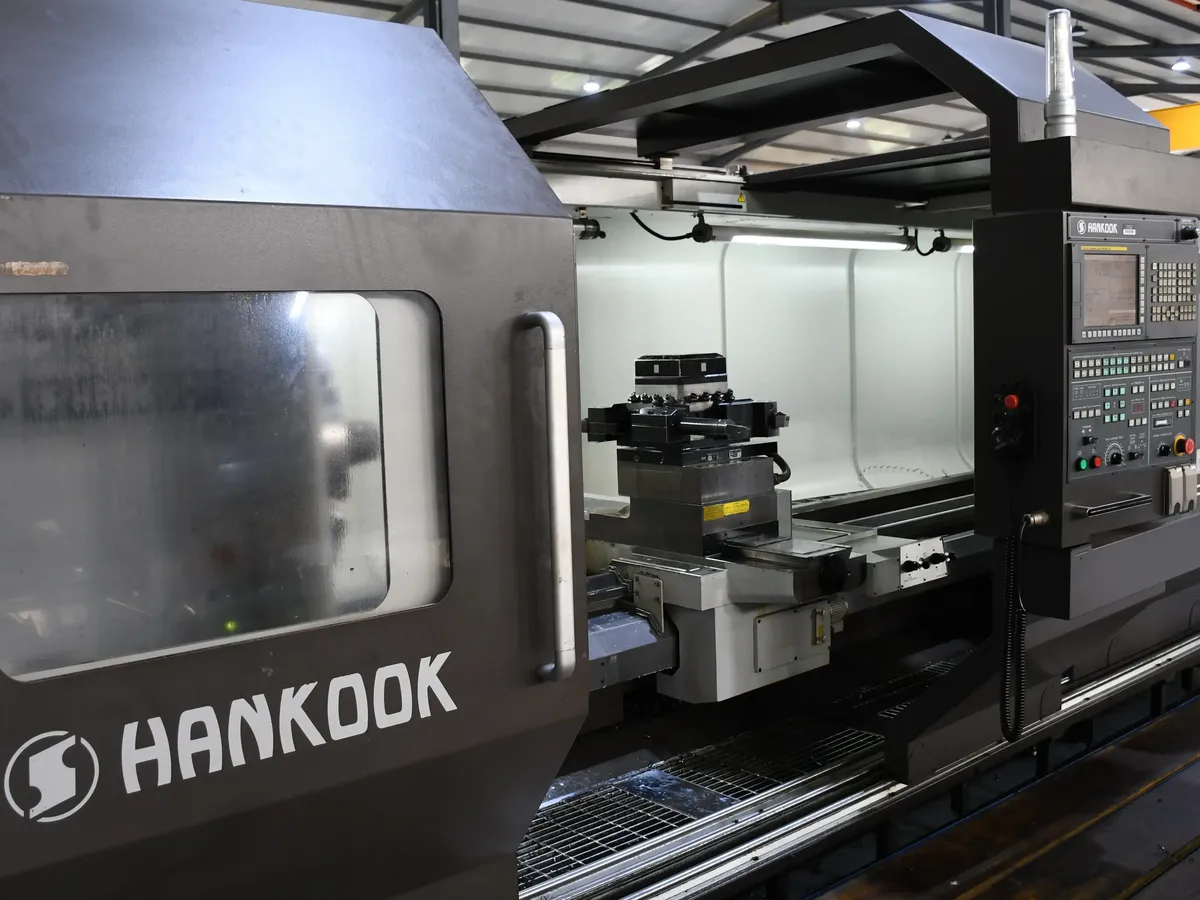

Hankook 9NC x 4000 CNC

Specification –

  • Front 4 Jaw 800mm / 254mm bore chucks
  • Spindle Bore 105mm
  • 37kw spindle motor
  • Fanuc 32i CNC Control System
  • 5000 kgs load capacity between centres
  • Full guard flat bed
  • 950mm swing over bed

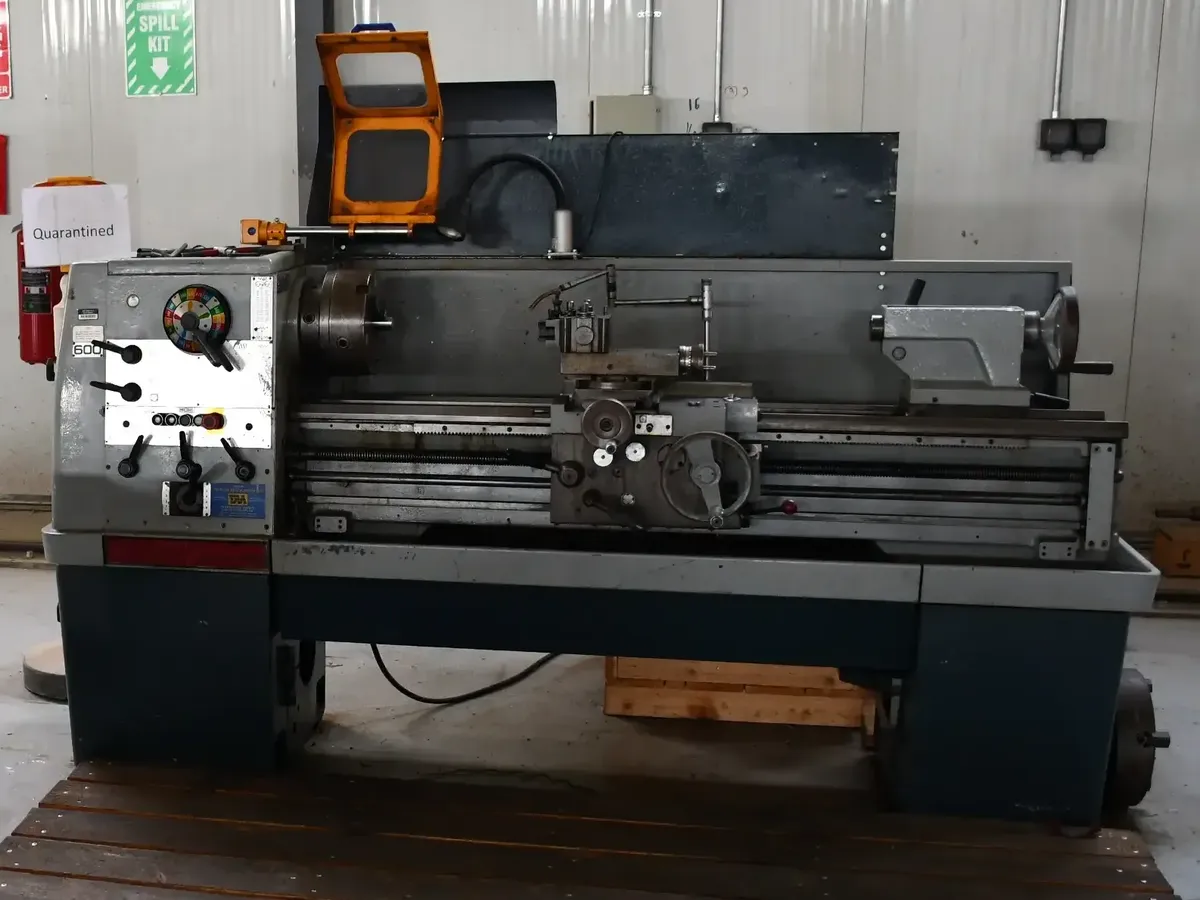

Dean Smith and Grace Manual Lathe 25PX120

Specification –

  • 10.87” Spindle Bore
  • 26 ½” Swing over bed
  • 16” swing over cross slide with chip guard
  • 18 ¼” swing over cross slide
  • 5 MT tailstock
  • 4” diameter tailstock spindle with 10” travel
  • 12 Spindle speeds from 4.2 to 290rpm

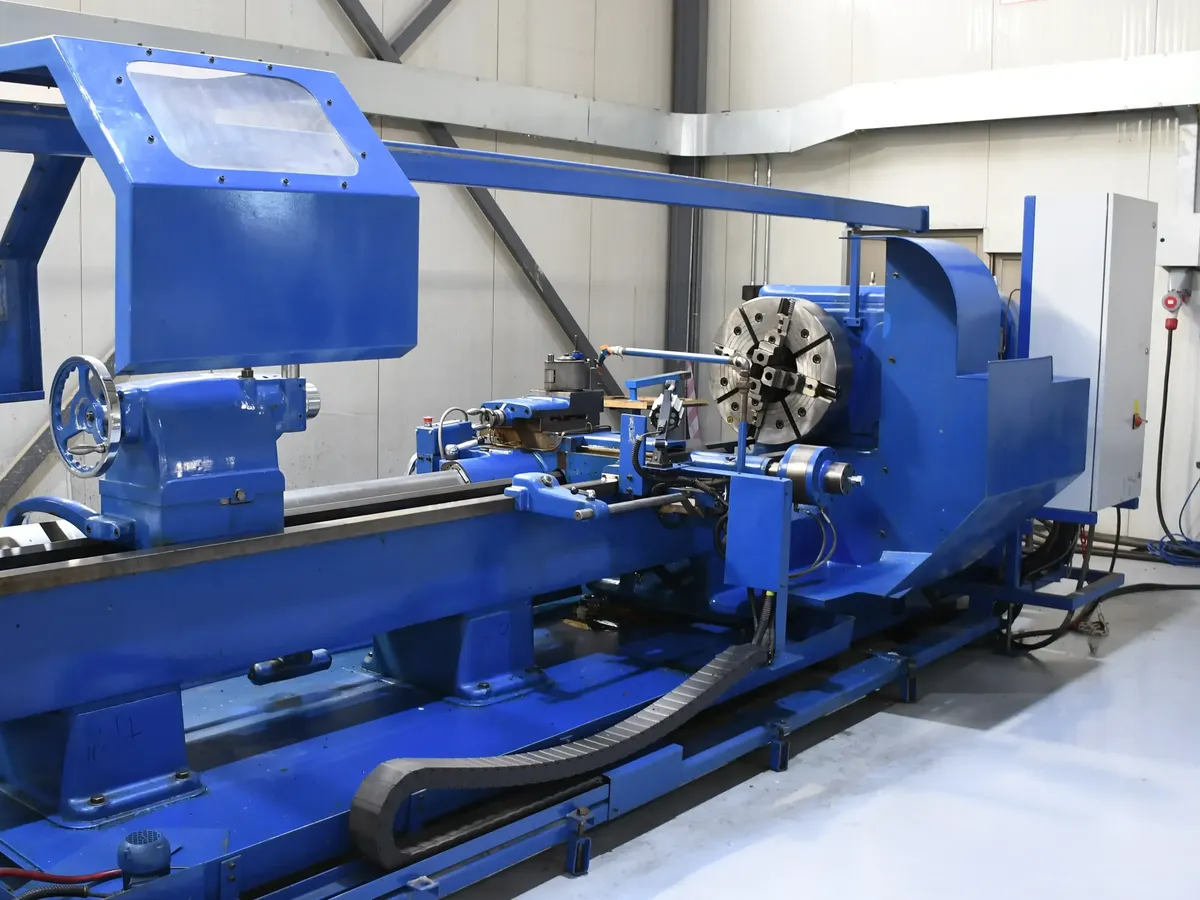

Churchill Cylindrical Grinder

Specification –

  • Capacity to grind mills and stabilizers up to 26” diameter
  • Hollow spindle worked with a 12.5” bore and 4 jaw chuck
  • Internal / steady grinding spindle

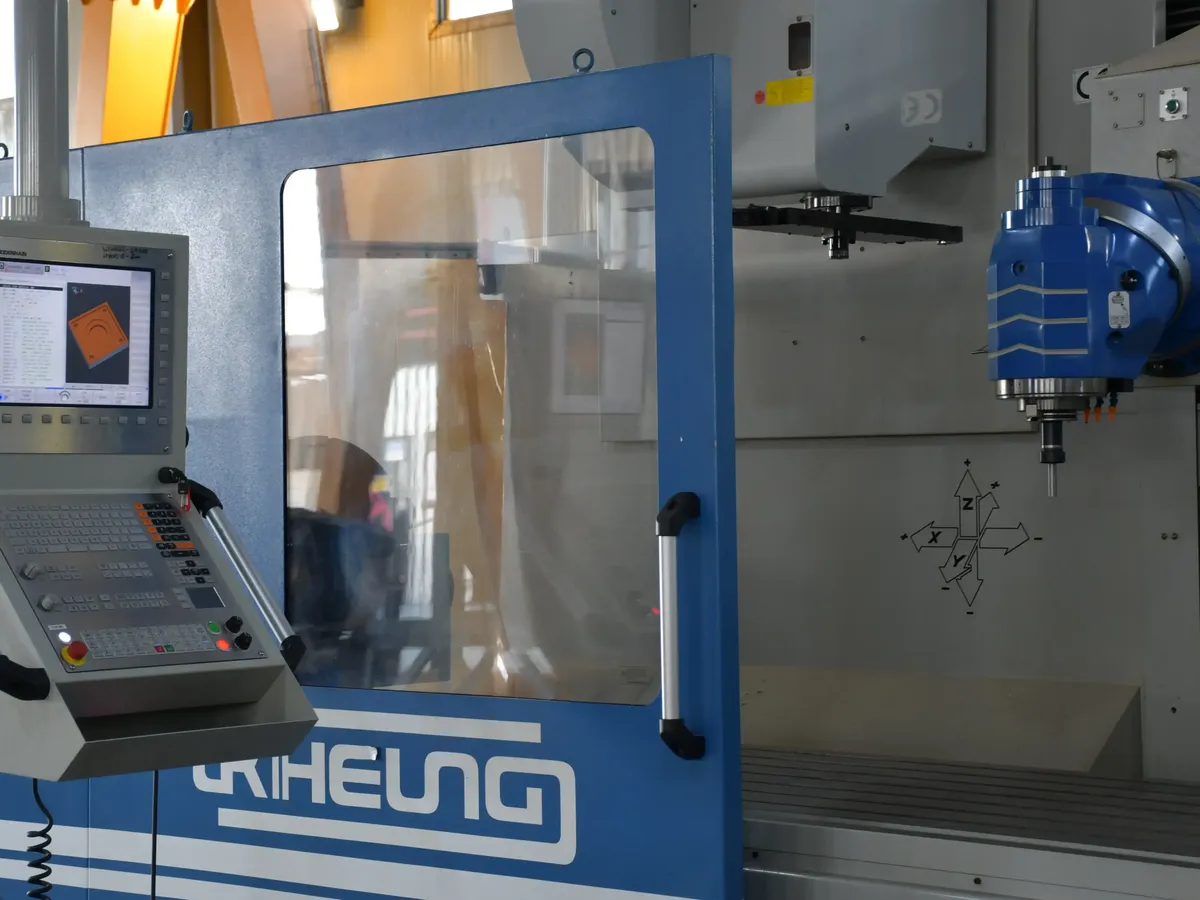

Kiheung U1200N Bed Type Milling Machine

Specification –

  • Table Size: 2500mm-5000mm
  • X Axis: 2100mm-5000mm
  • Y Axis: 1000mm-1250mm
  • Z Axis: 1050mm-2000mm
  • Spindle Power: 28-38kw
  • ATC: 20-60 Tools

Two Powered Pipe Loader Systems

Specification –

  • Capacity to carry full length drill pipe range 2 (30”) and 3 (40”)
  • Hydraulically operated drive and vertical movement
  • 4 Roller stands, 3 driven and 1 steady support
  • Roller vertical supports have 300mm of travel
  • Polypropylene rollers fitted with safety valves to ensure same rotational speed
  • All bearings and housings sealed for life

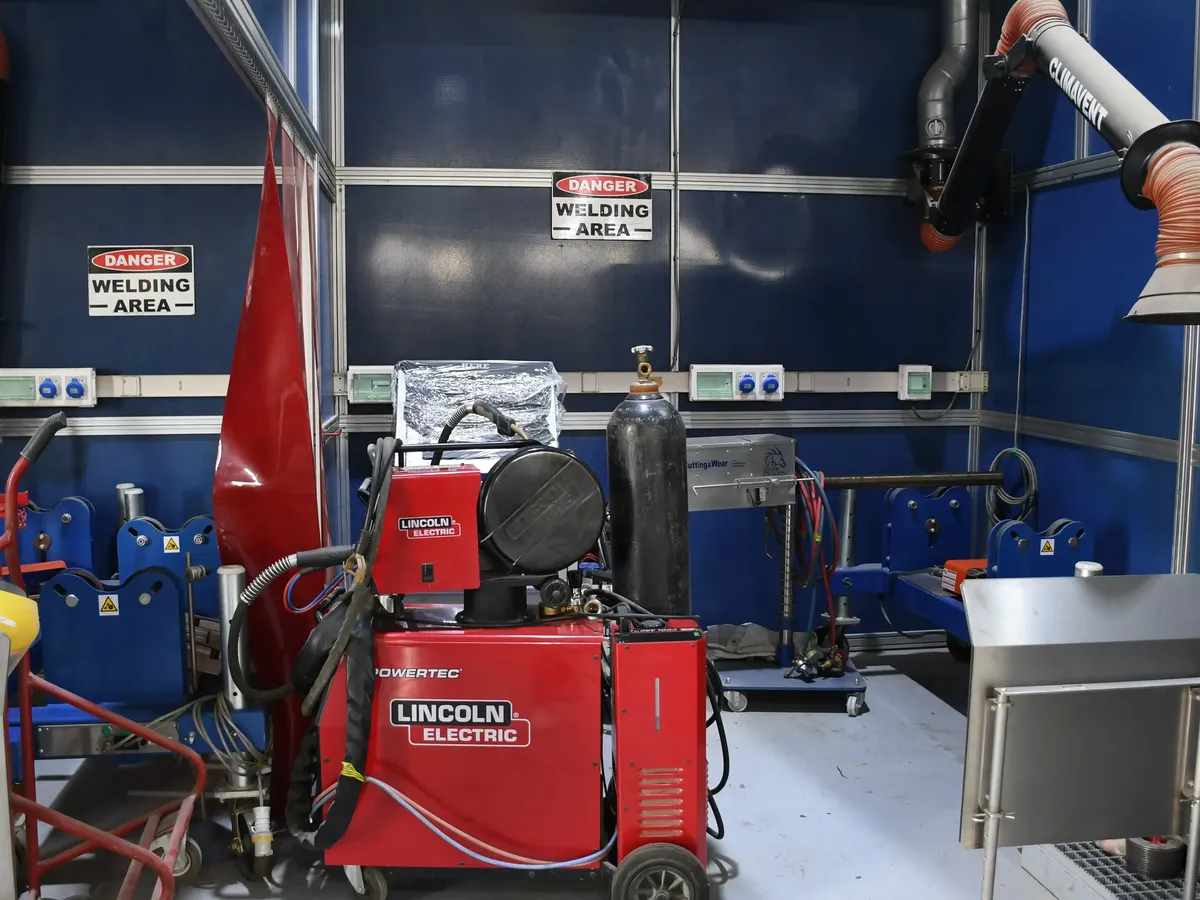

Hard Facing Bay and Dual Welding Bays

Specification –

  • Constructed from heavy duty aluminium and sound deadening insulation
  • Dual bay size 6m wide x 3.2m deep
  • 18.5kw Extraction system
  • 2 x 3m movable extraction arm
  • Red welding grade PVC curtain partition
